High Speed Agricultural Labyrinth drip irrigation pipe making machine / Production Line
Quick Detail:
The Agricultural Labyrinth drip irrigation pipe making machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Description:

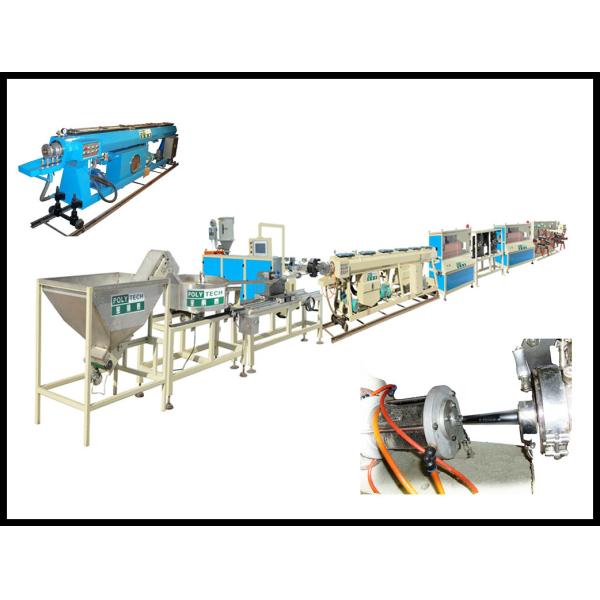

Agricultural Labyrinth drip irrigation pipe making machine included two extruders, one for the inner strip and another one for the outer pipes. The inner labyrinth strip was extruded same time with the outer pipe and welded together by the particular press device. The advantages of this line is fast cooling with high speed and precise processing, the stable speed was up to 150meters/min.
Competitive Advantage:
- Very easy winding because of no-dripper inside
- Thinner wall thickness can decreased to 0.12-0.15mm,so make the finished product with very competitive cost for farmers
- Whole system adopts the SIEMENS PLC and touch screen, to assure the high accuracy and stability
Specifications:
|
Diameter of pipe
|
6,12,16,20
|
|
Wall thickness
|
0.15-0.6
|
|
space
|
100-150-200-250-300-330-500
|
|
Working pressure
|
0.01-0.1
|
|
Water flow
|
0.85-1.2-1.5-1.8-2.2-3.0
|
Applications:
The Agricultural labyrinth drip irrigation pipe cutting machine is mainly used in the production of labyrinth drip irrigation pipe,which is widely used in greenhouse cash crop, farmland cash crop and economic trees' irrigation, such as irrigation for vegetable, flower and plant, tea garden and fruit
Application effect is excellent:
1. Water saving, fertilizer save and labor saving
2. Control the earth surface temperature and humidity, reduce insect pests' damage
3. Keep the soil structure
4. Improve the quality, increase production and synergy
Drip Irrigation Pipe Making Machine, Pipe Cutting Machine , Drip irrigation pipe machine
