110kw PPR Pipe Extrusion Machine Line / Pipe Making Machine 16 - 63mm With Single Screw Extruder
Quick Detail:
The PPR pipe production line is mechanotronics, with the advantages of:
1. Modern technology
2. Optimized design
3. High output
4. Stable plastification
Description:

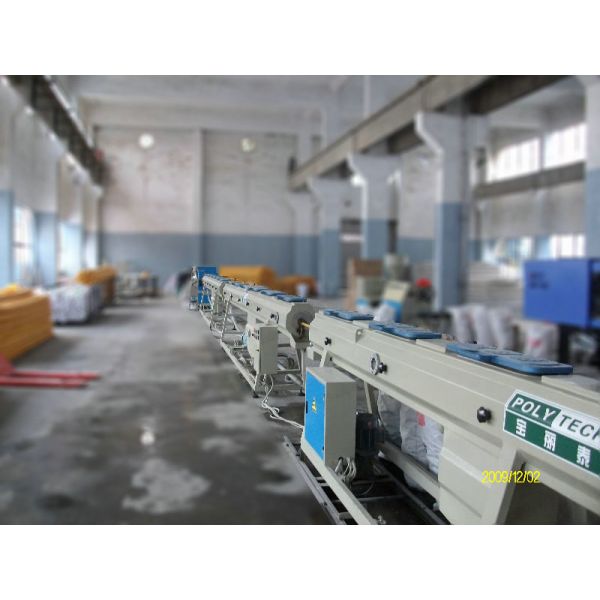

- The PPR pipe production line composed of single screw extruder, vacuum calibrating bath, spraying cooling bath, haul-off unit, cutter and tilting stacker;
- Coordinated with different specification of molds, to produce pressure water-supply, draining, gas pipe;
- High heat resistance, environmental stress and crack resistance
- Specially designed screw, decelerator with high torque and high power DC motor ensure good mixture of material and high output;
- Adding two more extruders, the line can produce glass-fiber reinforced pipe.
Competitive Advantage:
This PPR pipe machine mainly consists of controlling system,extruder,die,calibration system,haul-off and cutting device,printer,stacking device and winder. The special designed spiral basket structure of the extrusion die, ensures the flow distribution equally.The calibration system and cooling system guarantee the high quality of the plastic pipes.
Specifications:
|
Model
|
SJGZ-63
|
SJGZ-160
|
|
Extruder
|
SJ65
|
SJ90
|
|
Pipe range(mm)
|
16-63
|
75-160
|
|
Screw diameter(mm)
|
65
|
90
|
|
L/D ratio
|
33:1
|
33:1
|
|
Max output(kg/h)
|
~120
|
~300
|
|
Linear speed(Max,m/min)
|
12
|
4
|
|
Main motor power(kw)
|
37
|
110
|
Applications:
This PPR pipe machine can produce PP-R pipe,PE-RT pipe,PEX pipe. PP-R pipe is non-toxic,healthy,heat-resistant and have good performance of warm keeping, it is convenient for welding and can also be recycled. PEX pipe has good character of high and low temperature resistant. Different from PEX, PE-RT don't need to crosslink but can be recycled and convenient for processing with the character of heat-resistant and better stability.
