Single Screw Extruder PPR Pipe Extrusion Machine For Plastic With PLC System
Quick Detail:
The PPR pipe extrusion machine is mechanotronics, with the advantages of:
1. Modern technology
2. Optimized design
3. High output
4. Stable plastification
Description:
|
Model
|
SJGZ-63
|
SJGZ-160
|
|
Extruder
|
SJ65
|
SJ90
|
|
Pipe range(mm)
|
16-63
|
75-160
|
|
Screw diameter(mm)
|
65
|
90
|
|
L/D ratio
|
33:1
|
33:1
|
|
Max output(kg/h)
|
~120
|
~300
|
|
Linear speed(Max,m/min)
|
12
|
4
|
|
Main motor power(kw)
|
37
|
110
|

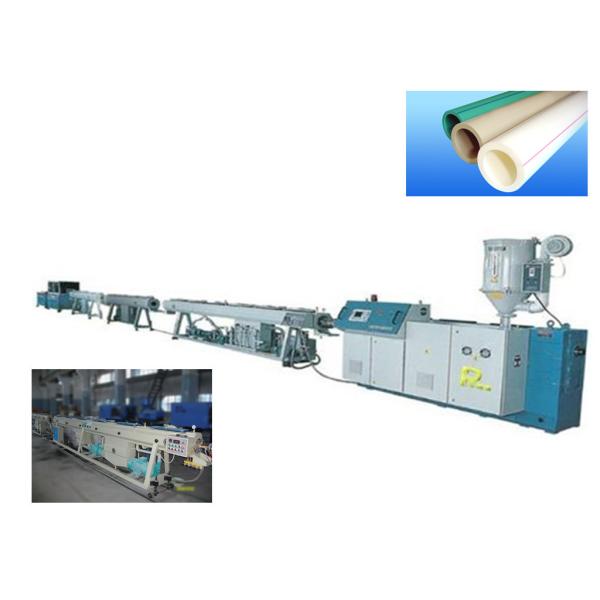

- The PPR pipe extrusion machine composed of single screw extruder, vacuum calibrating bath, spraying cooling bath, haul-off unit, cutter and tilting stacker;
- Coordinated with different specification of molds, to produce pressure water-supply, draining, gas pipe;
- High heat resistance, environmental stress and crack resistance
- Specially designed screw, decelerator with high torque and high power DC motor ensure good mixture of material and high output;
- Adding two more extruders, the line can produce glass-fiber reinforced pipe.
Competitive Advantage:
1)This PPR plastic pipe extrusion line mainly consists of controlling system,extruder,die,calibration system,haul-off and cutting device,printer,stacking device and winder. The special designed spiral basket structure of the extrusion die, ensures the flow distribution equally.The calibration system and cooling system guarantee the high quality of the plastic pipes.
2)This PPR pipe extrusion machine equipped with different extrusion dies, screws and downstream line, the extrusion line can also produce PE,ABS,PE-RT and PEX pipes.The highest rank machine equipped with PLC system and touching monitor with big screen, is highly automated with better reliability and stability.
Applications:
This PPR plastic pipe extrusion line can produce PP-R pipe,PE-RT pipe,PEX pipe. PP-R pipe is non-toxic,healthy,heat-resistant and have good performance of warm keeping, it is convenient for welding and can also be recycled. PEX pipe has good character of high and low temperature resistant. Different from PEX, PE-RT don't need to crosslink but can be recycled and convenient for processing with the character of heat-resistant and better stability.
PPR pipe extrusion machine ,plastic pipe extrusion line, single screw extruder
